Gas Fillers
Offering customers a range of gas filling machinery to suit all levels of production, we are expertly placed to provide you with specialist advice and practical solutions for gas filling with any type of spacer bar and sealant combination. The latest Inagas technology includes user friendly features such as touch screen controls, the patented Smart Start lance and data logging and printing, as well as a number of other proven design features.
The full machinery range
Firstfill
The Firstfill is an introductory gas filler for customers wanting to make low volumes of Argon filled insulated glass units. It has a flow rate of 10 litres a minute and uses the two hole filling method.
The Firstfill features the same quick reaction gas sensor as used in the rest of the Inagas range. Firstfill features include a vacuum gas sensor pump, semi-auto calibration, adjustable gas fill targets and IG production statistics.

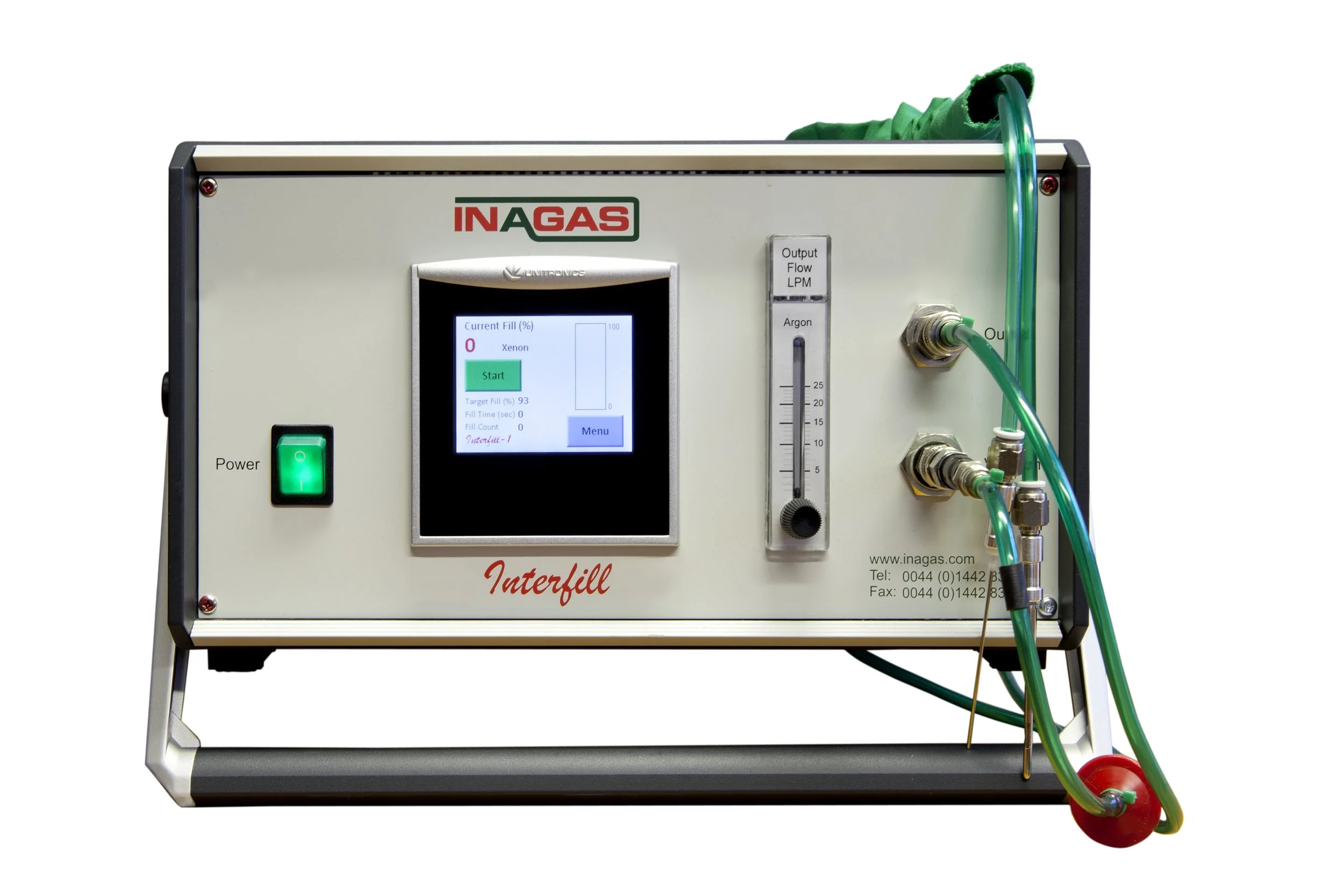

The Interfill is a compact single line 25 litre a minute machine designed for the production of Argon gas filled insulated glass units. The Interfill is capable of gas filling using a one or two hole filling method.
The Interfill KX has the additional feature of variable vacuum and flow rate control making ideal for gas filling with Krypton/ Xenon or mixed gases.
Interfill
Smartfill-2
The Smartfill-2 is a dual line version of the Smartfill-1 designed for medium to high production of Argon gas filled insulated glass units. Each line operates independently from one another with a combined maximum flow rate of 60 litres per minute using the Smartstart lance system.
The Multifill range has been designed to operate with all the inert gases and mixtures used in the insulated glass market using the two hole filling method.
The Multifill-1 has a variable flow control between 1-15 litres a minute. This allows the customer to gas fill with Argon at the higher flow rate to maximise filling times. The flow rate can then be slowed down when using Krypton/ Xenon and mixed gases to minimise wastage of the more expensive gas.
Multifill Datasheet
Multifill-1
Smartfill-4
The Smartfill-4 is a four line machine designed for high production of Argon gas filled insulated glass units. Each line operates independently from one another with a combined maximum flow rate of 120 litres per minute using the Smart start lance system.
The Smartfill-4 has all the benefits of having two Smartfill-2 machines but with the added convenience and mobility of a built in trolley system.

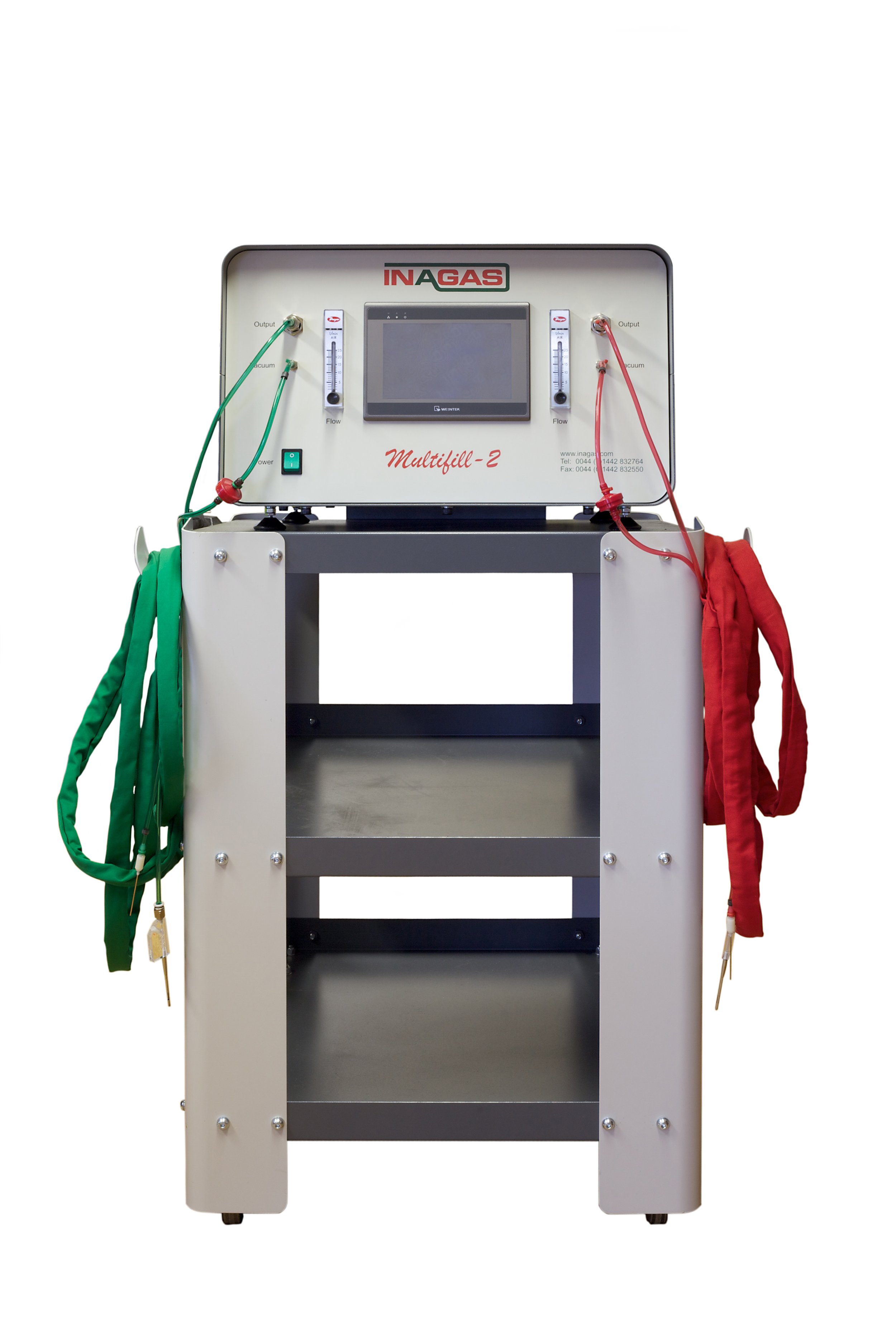

Multifill-2
The Multifill-2 is a dual line version of the Multifill-1 and has the ability to gas fill with two different gases at the same time.
Each line has a variable flow control between 1-15 litres a minute. This allows the customer to gas fill with Argon at the higher flow rate to maximise filling times. The flow rate can then be reduced when using Krypton/ Xenon and mixed gases to minimise wastage of the more expensive gas. Alternatively both lines can be used to fill a Triple insulated glass unit with a different gas in each cavity.

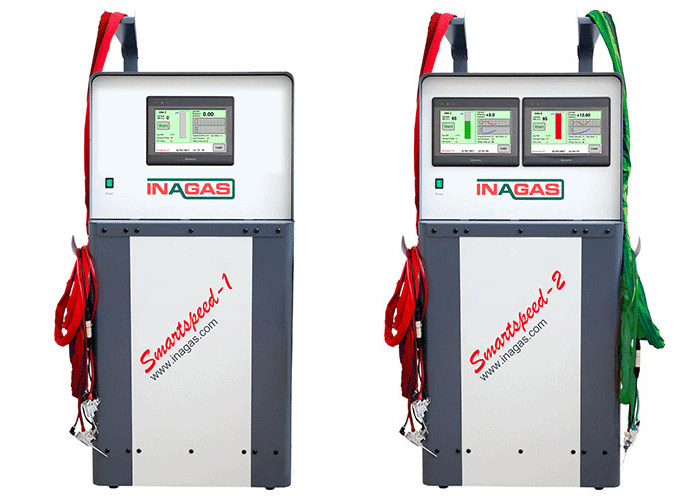

Smartspeed 1 & 2
The Smartspeed range is available as either a single or twin line machine designed for high speed Argon gas filling.
The internal IG pressure sensor automatically regulates the variable filling speed between 70-85 litres a minute to ensure a pressure balanced and accurate gas fill. Features from the Smartfill range such as the Smartstart Remote, Data logging and Print Feature are included as standard.

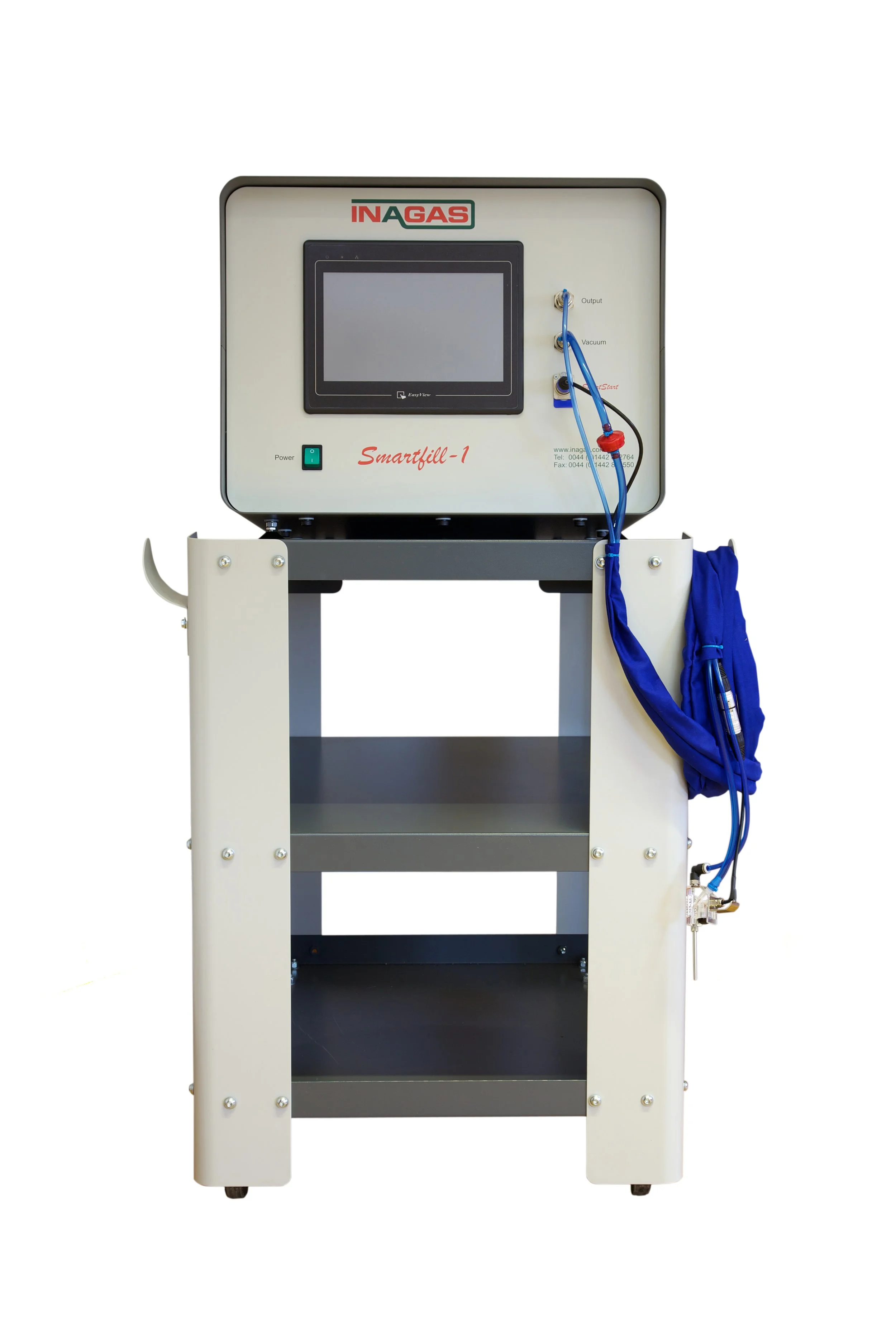

The Smartfill-1 is a single line 30 litre a minute machine designed for the production of Argon gas filled insulated glass units. The Smartfill-1 is the first machine in the Inagas range to be equipped with the unique Smartstart lance system as standard which can be used either to gas fill using the one or two hole filling method.
Smartfill-1
